Surface Mounted Valve Box
SKU:KSMB
Valve boxes can have louvers, peepholes, or glass panels. Boxes can be drilled or punched for pipes or conduits of all sizes.

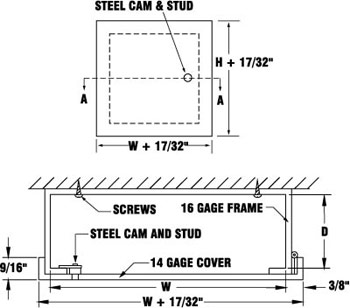

The KSMB is a surface mounted valve box designed to keep shut-off valves, gauges and controls accessible without cutting into an existing wall. The box mounts directly to the face of the wall, making it a practical choice for masonry walls, shallow partitions and retrofit projects where there is not enough wall depth for a recessed valve box.
When to use a surface mounted valve box
A surface mounted valve box is useful when the valve needs protected access but the wall cannot accommodate a recessed enclosure. Because the KSMB installs on the finished wall surface, there is no need to create a wall cavity or open an existing finished wall just to reach the plumbing or service valve.
This makes the KSMB particularly suitable for:
- Existing buildings and retrofit applications
- Solid masonry walls
- Shallow wall partitions
- Plumbing and mechanical service areas
- Locations where valves need to remain accessible for maintenance or emergency shut-off
- Projects where a recessed valve box cannot be accommodated
The box keeps the valve protected while providing a defined access point for building maintenance personnel.
Surface mounted or recessed valve box
The main decision is whether the wall has enough depth for the box.
A recessed valve box sits inside the wall cavity with the door finishing at the wall surface. A surface mounted valve box such as the KSMB attaches to the face of the wall and is therefore better suited to shallow walls, masonry construction and finished walls that should not be opened.
Choose the KSMB when installation needs to be completed without cutting back the existing wall. Choose the recessed valve box when the wall construction provides sufficient depth and a flush recessed appearance is required.
Size the box around the valve
A valve box should be sized from the valve and its handle rather than from the pipe diameter alone. The enclosure needs enough clear internal space for the valve handle to move through its complete travel, along with sufficient room for any gauges, controls or associated components that need to remain accessible.
Karp can drill or punch valve boxes for pipes and conduits of different sizes, allowing the enclosure to be matched to the actual service arrangement. Custom sizes are also available.
Before specifying a surface mounted valve box, provide the valve details, pipe arrangement and required access area so the appropriate box dimensions can be confirmed.
Valve box door options
The KSMB can be configured with different door options depending on the application. Louvers can provide ventilation where air movement is required, while a peephole or glass panel can allow a gauge or valve position to be viewed without opening the box.
These options can be useful where the box needs to provide both physical protection and visual access to the equipment inside.
Plan the installation before ordering
Confirm the finished wall condition and the space required around the valve before selecting the box. The KSMB is particularly useful for retrofit work because it mounts to the existing wall rather than requiring the wall to be opened.
For additional access solutions, see Karp's valve box collection and access doors and panels.
The valve box should also be identified according to the service it controls. Clear labeling helps maintenance personnel locate the correct isolation point quickly during routine service or an emergency.
