SKU:DSC-214M

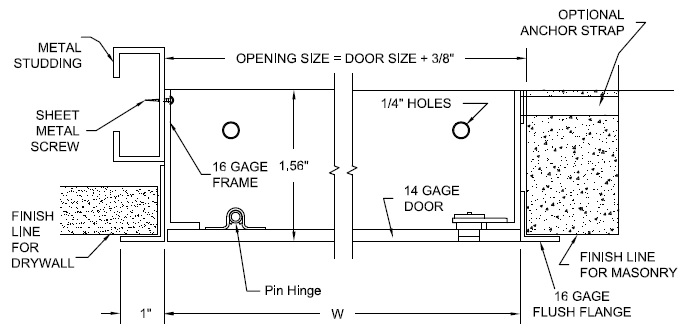

The DSC-214M is a distinctly superior door for new installations or for remodeling. The exposed flange adds rigidity to the unit and perfectly conceals the rough wall opening. Flexible anchor straps can be provided for installation within masonry opening.

| Door Size H × W (in.) |
Door Size H × W (mm) |
Wall/Ceiling Opening H × W (in.) |
Shipping Wt. (lbs.) |
Shipping Wt. (kg.) |
|---|---|---|---|---|
| 6 × 6 | 152 × 152 | 6 3/8 × 6 3/8 | 2.1 | 1 |
| 8 × 8 | 203 × 203 | 8 3/8 × 8 3/8 | 3.1 | 1.4 |
| 10 × 10 | 254 × 254 | 10 3/8 × 10 3/8 | 4.3 | 2 |
| 12 × 8 | 305 × 203 | 12 3/8 × 8 3/8 | 4.6 | 2.1 |
| 12 × 12 | 305 × 305 | 12 3/8 × 12 3/8 | 6.3 | 2.9 |
| 14 × 14 | 356 × 356 | 14 3/8 × 14 3/8 | 8.1 | 3.7 |
| 16 × 12 | 406 × 305 | 16 3/8 × 12 3/8 | 7.8 | 3.5 |
| 16 × 16 | 406 × 406 | 16 3/8 × 16 3/8 | 9.9 | 4.5 |
| 18 × 12 | 457 × 305 | 18 3/8 × 12 3/8 | 8.9 | 4 |
| 18 × 18 | 457 × 457 | 18 3/8 × 18 3/8 | 12.2 | 5.5 |
| 20 × 16 | 508 × 406 | 20 3/8 × 16 3/8 | 11.8 | 5.4 |
| 22 × 22 | 554 × 554 | 22 3/8 × 22 3/8 | 16.3 | 7.4 |
| 24 × 12 | 610 × 305 | 24 3/8 × 12 3/8 | 10.6 | 4.8 |
| 24 × 18 | 610 × 457 | 24 3/8 × 18 3/8 | 14.5 | 6.6 |
| 24 × 20 | 610 × 508 | 24 3/8 × 20 3/8 | 16.5 | 7.5 |
| 24 × 24 | 610 × 610 | 24 3/8 × 24 3/8 | 18.7 | 8.5 |
| 30 × 20 | 762 × 508 | 30 3/8 × 20 3/8 | 20.1 | 9.1 |
| 30 × 22 | 762 × 554 | 30 3/8 × 22 3/8 | 21.7 | 9.9 |
| 30 × 24 | 762 × 610 | 30 3/8 × 24 3/8 | 23.6 | 10.7 |
| 30 × 30 | 762 × 762 | 30 3/8 × 30 3/8 | 27.8 | 12.6 |
| 36 × 22 | 914 × 554 | 36 3/8 × 22 3/8 | 25.6 | 11.6 |
| 36 × 24 | 914 × 610 | 36 3/8 × 24 3/8 | 28.2 | 12.8 |
| 36 × 36 | 914 × 914 | 36 3/8 × 36 3/8 | 36.8 | 16.7 |
| 48 × 24 | 1219 × 610 | 48 3/8 × 24 3/8 | 34.4 | 15.6 |
Spec Sheet / CAD Files
Download the architectural specification sheet and CAD drawings for this product.
