Standard Access Doors

Surface Mounted Access Door for All Surfaces

SM

Surface Mounted Access Door for All Surfaces
Standard Access Doors

Surface Mounted Access Door for All Surfaces

SM

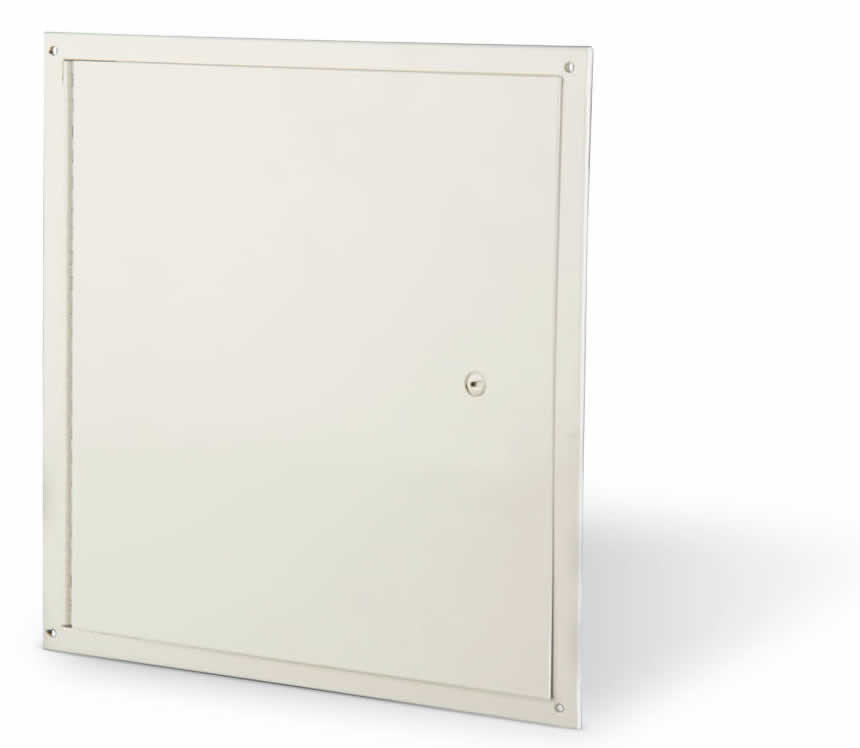

The DSB-214SM is a surface mounted door that does not require framing, bracing or notching and cutting of inner wall obstructions. Single piece construction of the frame prevents unit from racking and allows door to sit perfectly within frame and to open to 175 degrees.

Size:

Add the product to the quote list, Our team will review your list and connect you with the nearest authorized Karp distributor for pricing and availability.

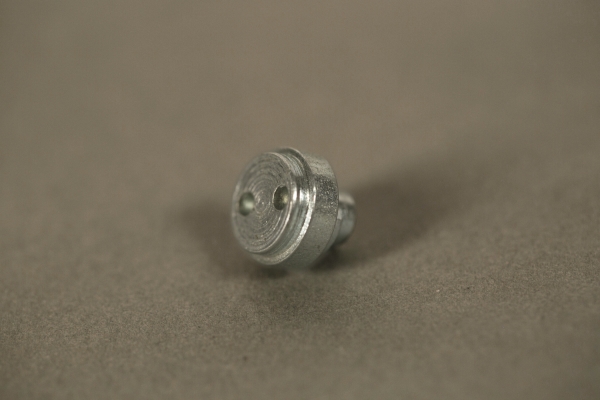

Spanner Head Lock

Spanner Head Lock

The Spanner Head is an economical tamper-proof latching solution.

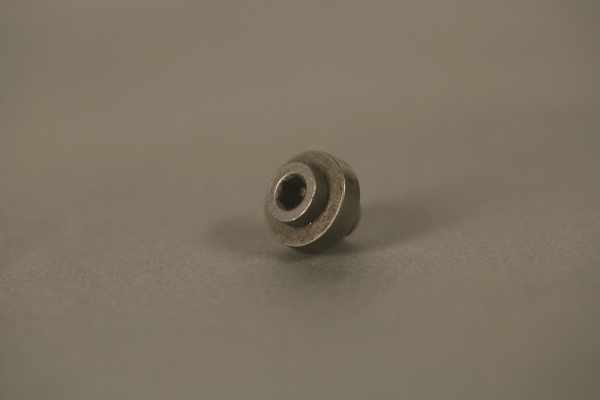

Allen Head Lock

Allen Head Lock

The Allen Head Security Latch is an economical, tamper-resistant latching mechanism that discourages theft, vandalism and unauthorized entry because it cannot be opened without an Allen wrench.

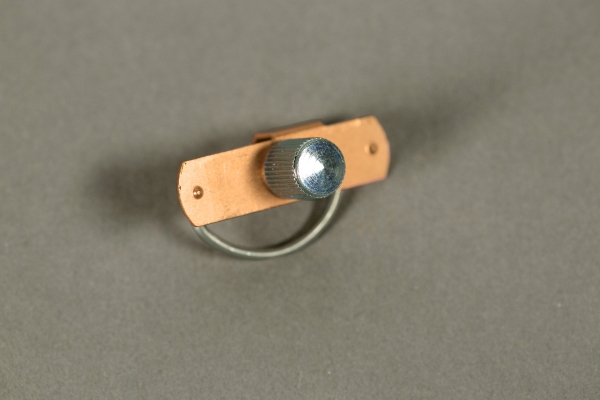

Knob Turn Latch

Knob Turn Latch

The Knob Turn Latch is finger operated, and is beneficial when tools are not available or desirable for opening and closing the access door.

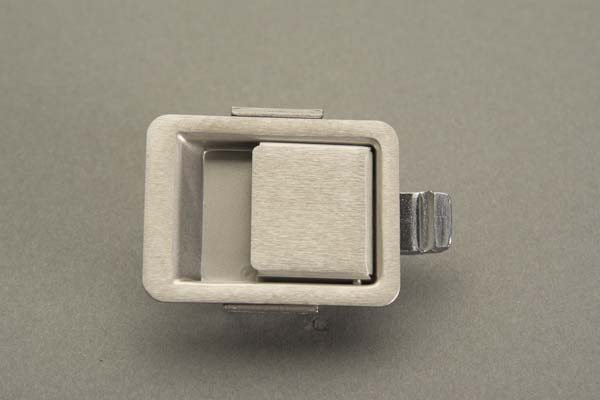

keyless Paddle Latch

keyless Paddle Latch

This flush mounted, keyless Paddle Latch has a finger pull that facilitiates opening.

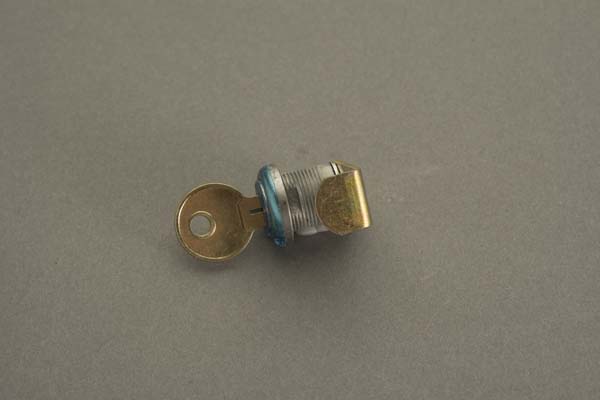

Cylinder Lock

Cylinder Lock

This economical cylinder locking device provides keyed access from the outside of the door.

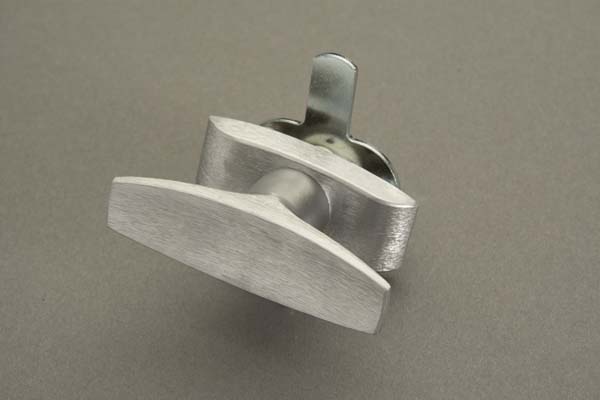

T-Handle Latch

T-Handle Latch

The T-Handle Latch with 90° turn is available with or without a keyed-alike cylinder lock.

Material

Type 304 stainless steel is well-suited for exterior weathering locations or interior hygienic locations such as hospitals and health care, pharmaceutical plants, research laboratories and food processing facilities. Stainless steel is corrosion resistant, durable and requires very little maintenance. Karp's stainless steel access doors have a No. 4 satin finish, which is a general purpose bright finish with a visible "grain" which prevents mirror reflection. Aluminum is ideal for any installations or evironments that require a strong, lightweight and rust-resistant access door.

Additional

Plexiglass vision panel provides durable, long-lasting and convenient viewing access to wall or ceiling contents. Karp can integrate louvers into its door design to satisfy any architectural and ventilation requirements. Removeable doors allow for unobstructed access to wall or ceiling contents.
Door Size
H × W (in.)
Door Size
H × W (mm)
No. of Stud
Catches/Latches
Shipping Wt.
(lbs.)
Shipping Wt.
(kg.)
8 × 8 203 × 203 1 1.8 0.8
12 × 12 305 × 305 1 4.2 1.9
16 × 16 406 × 406 2 7 3.2
24 × 24 610 × 610 4 13.7 6.2

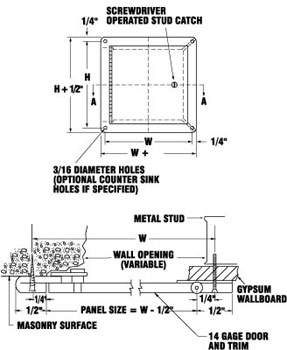

Spec Sheet / CAD Files

Download the architectural specification sheet and CAD drawings for this product.
